PLANETARY MIXER

Features

.The DEX MP planetary mixer with vertical shafts allow the rapid mixing of all types of quality concrete (dry,semi-dry and plastic).The great versatility of the DEX MP mixer enables it to be useed not only in the production of concrete,but also in the mixing of materals for the production of glass,ceramics,refractory materials,etc.

.The gearbox unit,specially designed for a balanced distribution of power to the various mixing device,ensures a low-noise rotation without backlash even under severe wroking conditions.Compared the traditional gearbox, this unit takes less space,and the maintenance space of the mixer can be enlarged 30%

.Equipped with a mechanical coupling and a hydraulic coupling(option),which can protect the transmission devices from overloads and impacts.

.Cr-hard cast iron blades are more wearable.As an alternative,we also offer polyurethane baldes for special requirement.

.According to different materials,the liners and tiles can be cast-iron,HARDOX steel plate(Sweden original) or hard facing materials.

.From optimal model selection to customerized mixer for special application,DEX can offer a full range of technical support and maintenance services.

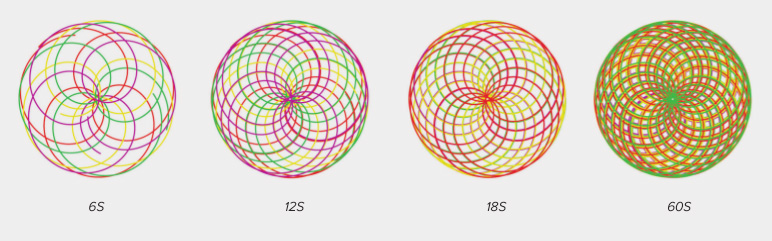

Mixing Locus Diagrams

This diagrams show the perfect mixing action of the DEX planetary mixer from 6 to 60 seconds after material is added.Note that the floor is completely swept by the mixing stars' action every 4 revolutions(6 seconds) and that each zone is covered at regular intervals in time.

PLANETARY MIXER SHOW

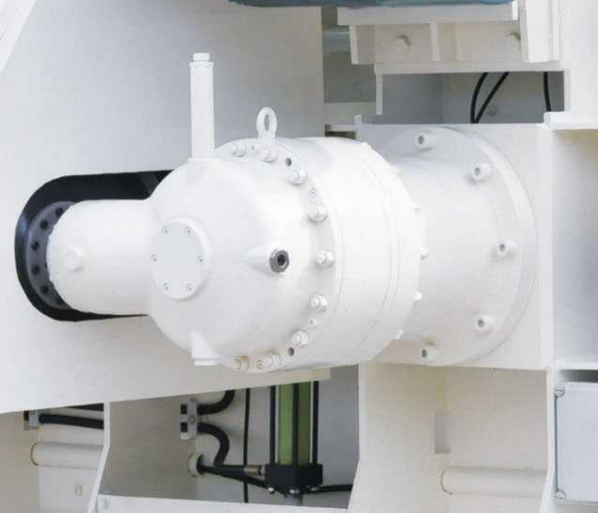

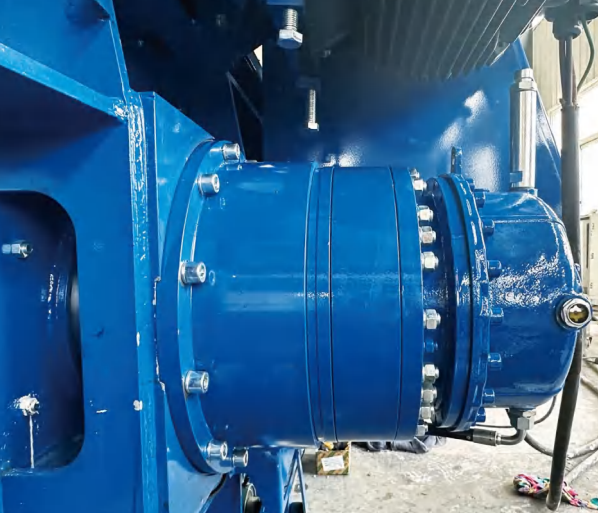

Reduction Gearbox	Maintenance Access
The gearbox unit,specially dssigned for a balanced distribution of power to the various mixing device,ensures a high efficiency and low-noise rotation.	Large access facility is for easy maintenance and cleaning.The key-operated safety swith guarantees the motor cannot be powered with cover open.

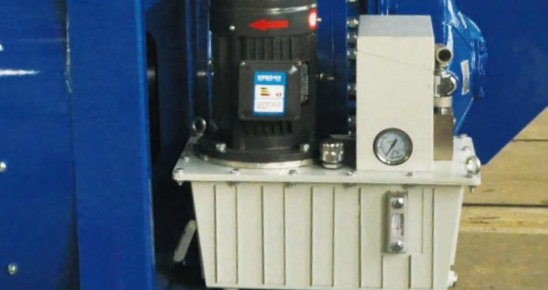

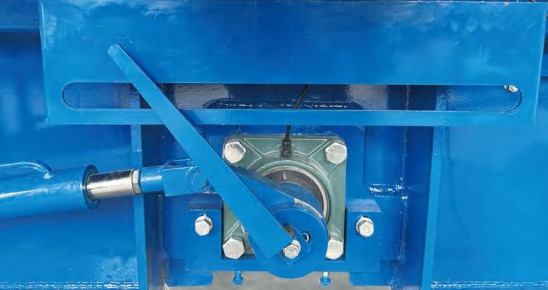

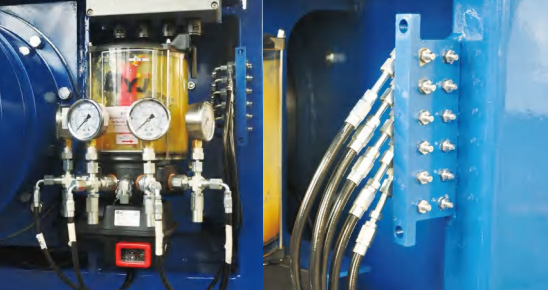

Hydraulic Unit	Discharging Door
Hydraulic Unit equipped with manual pump allows the door be opened in case of electric failure.	The discharging door is equipped with limit switches,which can be opened at angle.Maximum three discharging doors are available.

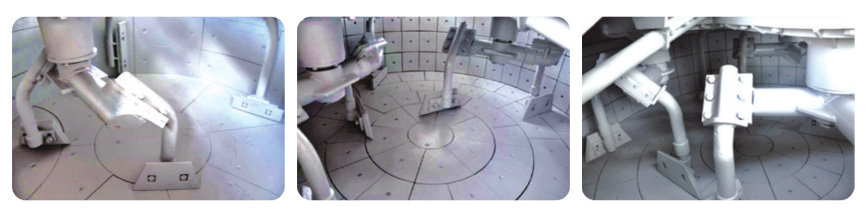

Mixing Device

Special designed mixing facility make the mixing faster and more homogeneous, no material heaped.

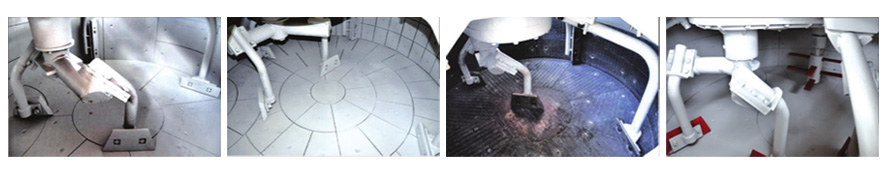

Various arrangement and materials of mixing device

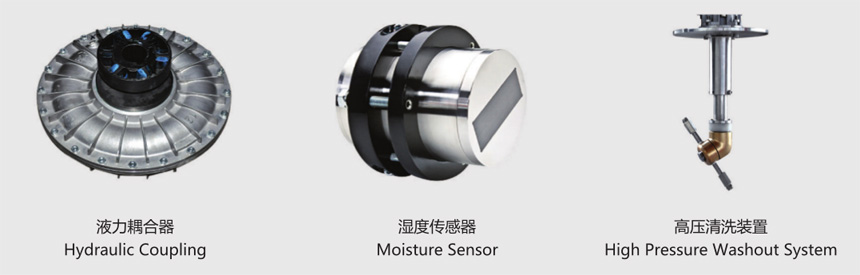

Options

Specifications

Item		MP50	MP100	MP150	MP250	MP330	MP500	MP750	MP1000	MP1250	MP1500	MP2000	MP2500	MP3000	MP4000
Filling Volume	L	75	150	225	375	500	750	1125	1500	1875	2250	3000	3750	4500	6000
Feed Capacity	Kg	120	240	360	600	790	1200	1800	2400	3000	3600	4800	6000	7200	9600
Output Volume	L	50	100	150	250	330	500	750	1000	1250	1500	2000	2500	3000	4000
Mixing Power	Kw	4	5.5	7.5	11	15	18.5	30	37	45	55	75	90	110	200
Mixing Star*Mixing Blade	Qty	1*2	1*2	1*2	1*2	1*2	1*2	1*3	2*2	2*2	2*2	3*2	3*3	3*3	3*3
Side Scraper/Discharge Scraper	Qty	1/-	1/-	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/2	1/2	1/2	1/2
Discharging Power	Kw	Pneumatic Discharging				2.2	2.2	2.2	3	3	3	4	4	4	4
Diameter	mm	750	1000	1300	1300	1600	1900	2200	2500	2800	2800	3100	3400	3400	3900
Weight	Kg	500	850	1300	1500	2200	2500	3500	5500	6000	6500	8500	10500	11000	16500

Technical data may change due to technical progress.Subject to modification without notice.
